Complete New Home Design & Consent Drawings

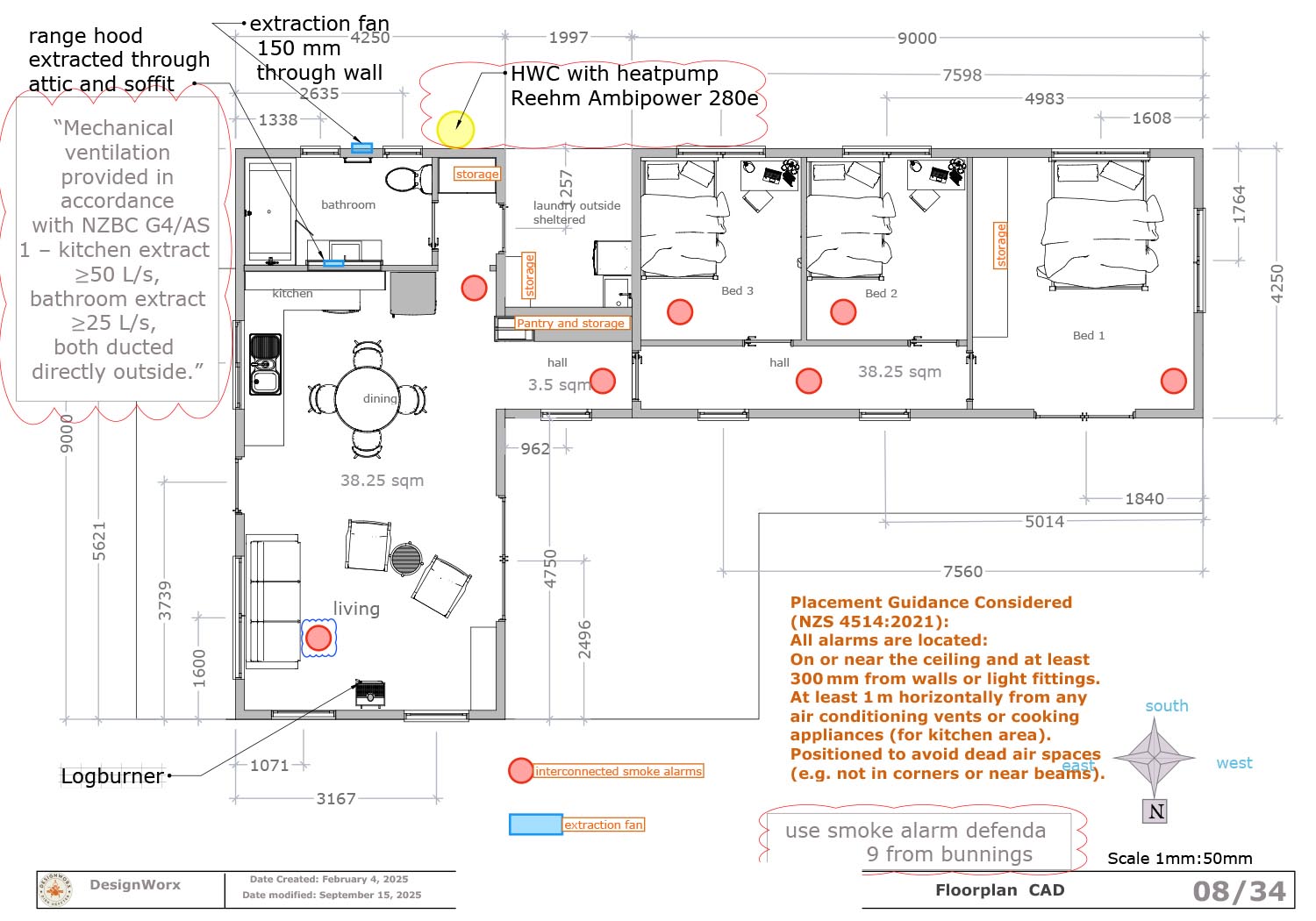

The home has been carefully planned around practical everyday living, with three bedrooms, open-plan kitchen, dining and living spaces, integrated storage and sheltered outdoor areas. Detailed plans and 3D views make the layout and relationship between the different spaces easy to understand before construction begins.

Practical residential design developed from concept through to construction detail.

This new home project demonstrates the complete DesignWorx design process, taking a residential concept through to the detailed documentation required for building consent and construction.

Designed with building in mind

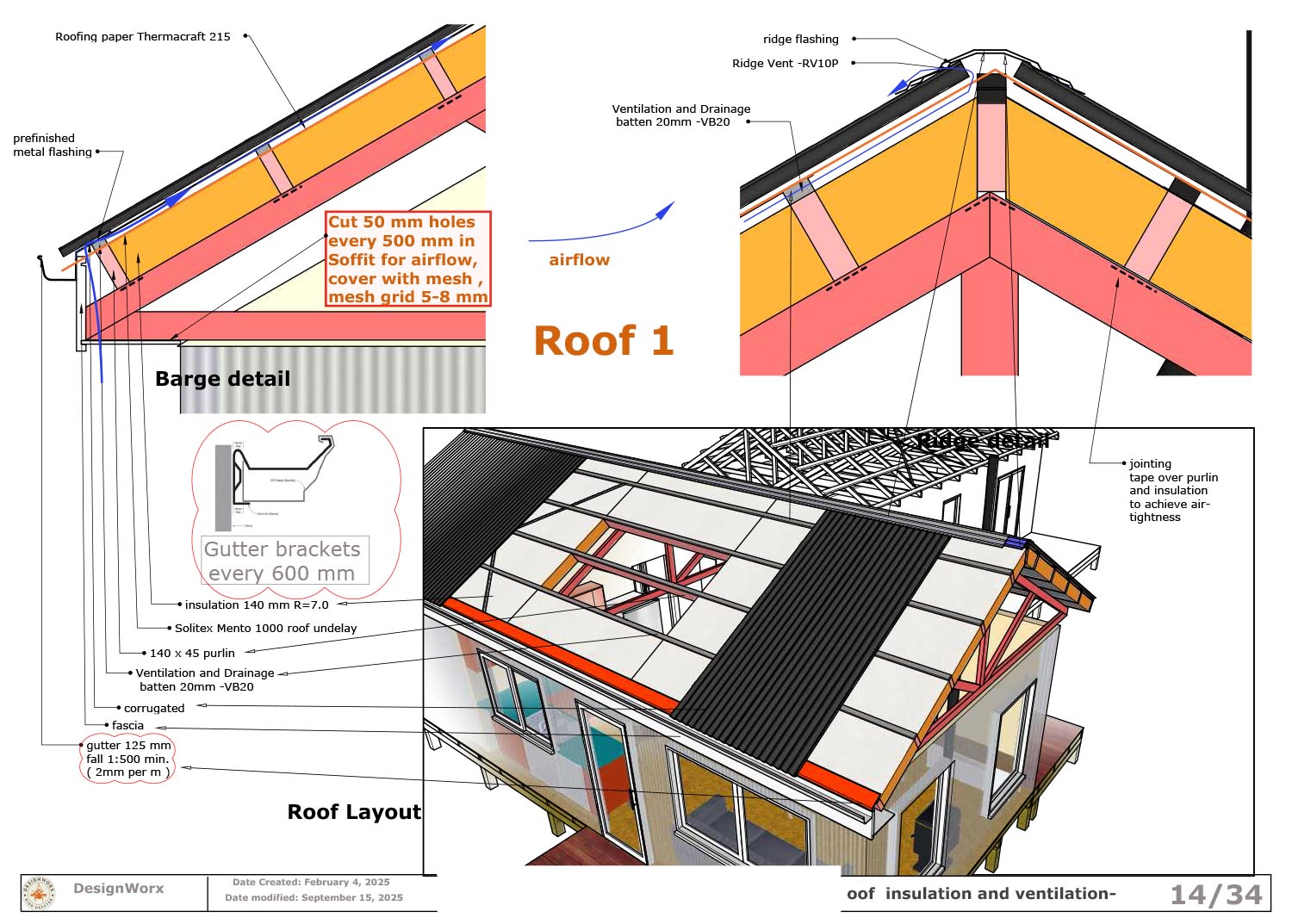

DesignWorx goes well beyond simply drawing the shape of a house. The complete drawing package considers foundations, framing and bracing, roof construction and ventilation, insulation, windows, plumbing, electrical layouts, cladding, waterproofing and other construction details.

With over 30 years of hands-on building experience, Dirk brings a builder's understanding to the design process — resolving practical construction details as the design develops rather than leaving them to be worked out later.

From plans to consent

The completed documentation brings the different parts of the project together into a coordinated consent drawing package, including the relevant New Zealand Building Code compliance information.

View the complete design

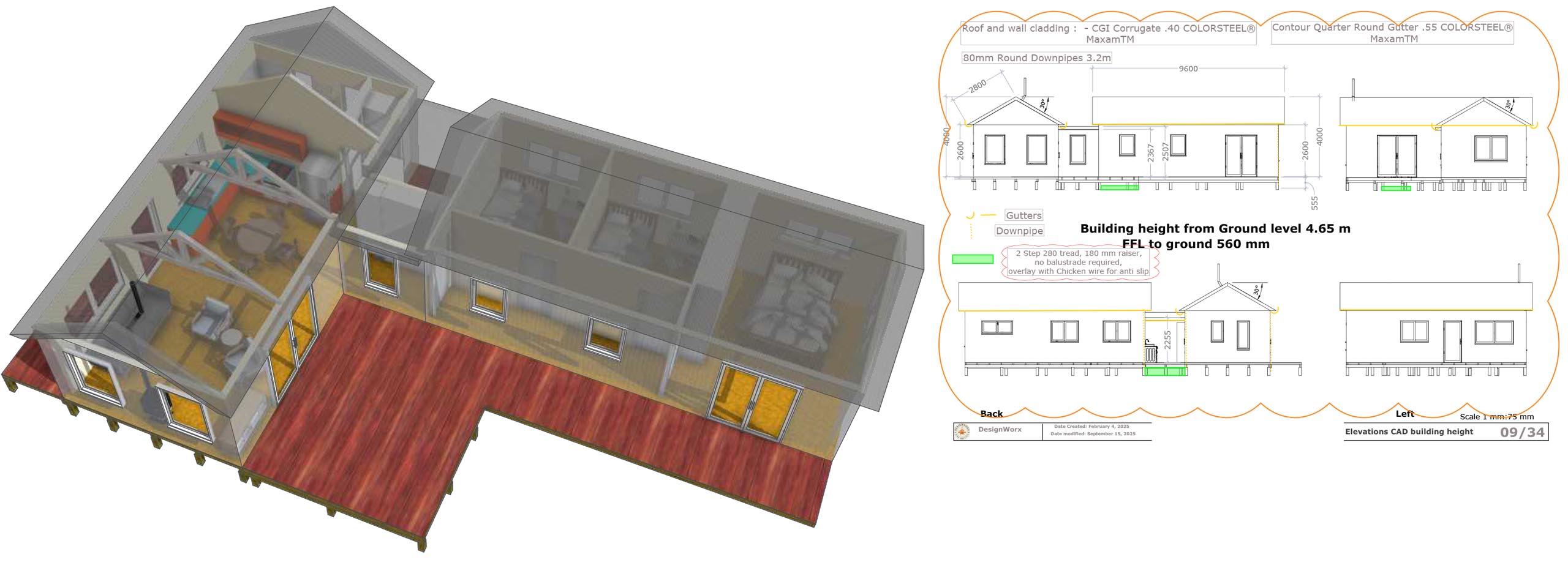

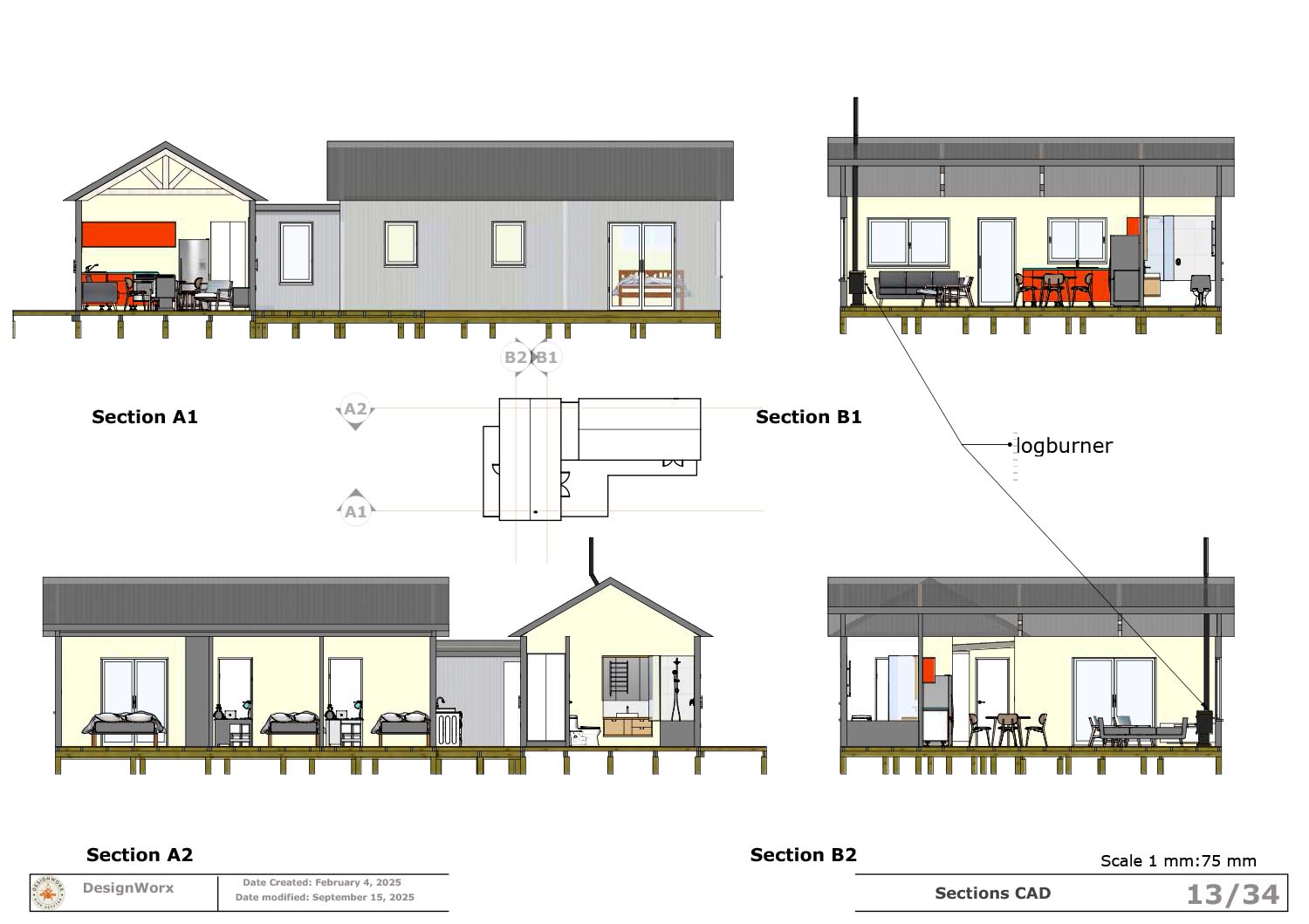

The images shown here are just a selection from this project. View the complete drawing set to see how the design develops from the overall house layout through to detailed construction documentation.

View complete set of drawings pdf file
